| General | |
|---|---|

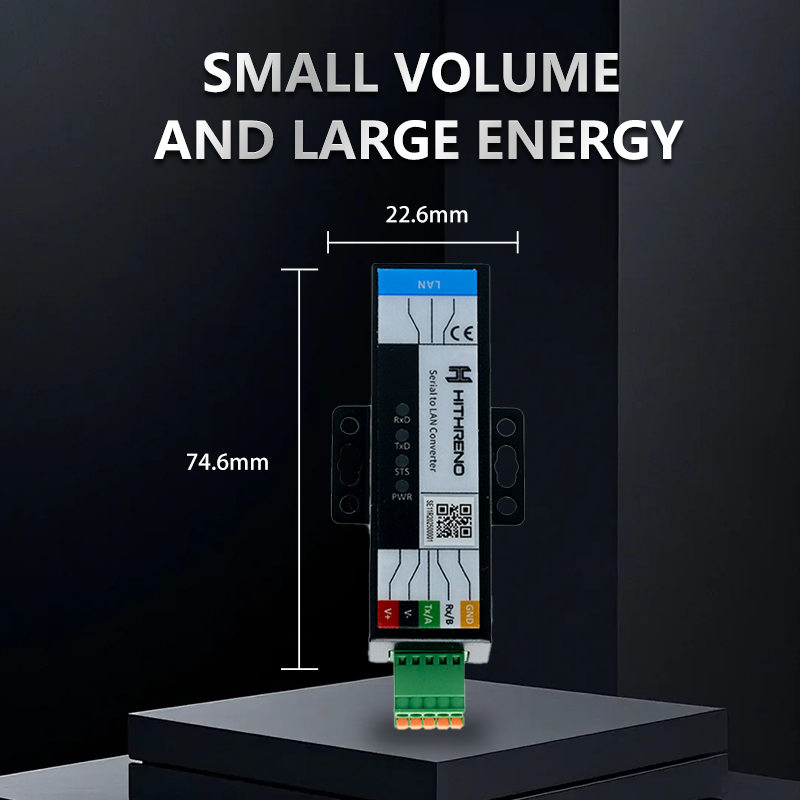

| Dimesion | 75 * 23 * 16mm |
| Weight | < 60g |
| Power Supply | 5 ~ 36V |
| Operating Current | 65mA @ 12V |
| Operating Temperature | -40°C ~ +85°C |

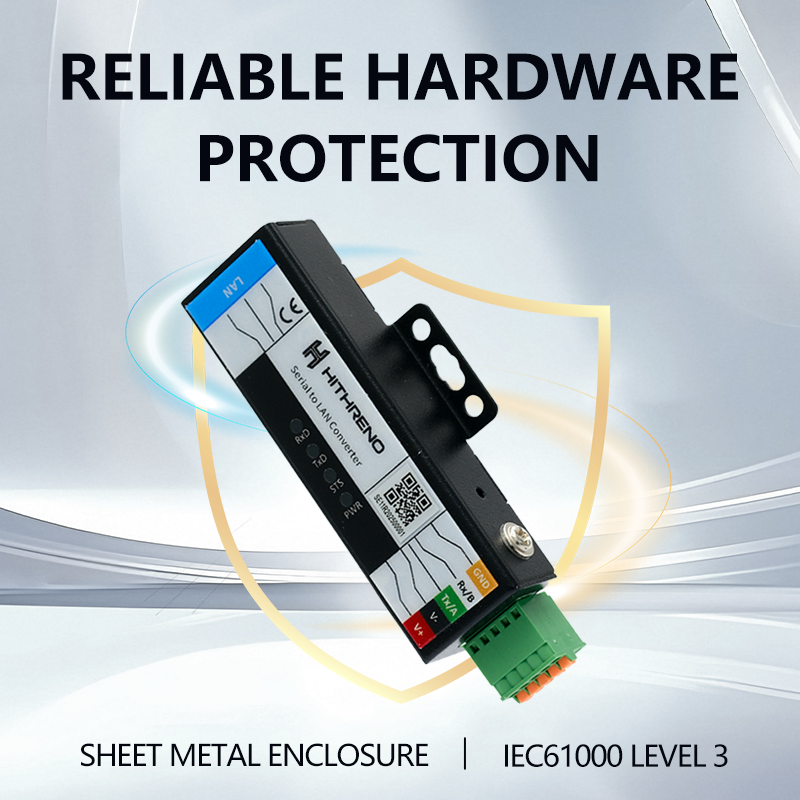

| ESD Protection Level | IEC 61000-4-2 Level 3 (±6kV Contact / ±8kV Air) |
| Northbound | |
|---|---|
| Protocol | Passthrough / Modbus RTU |

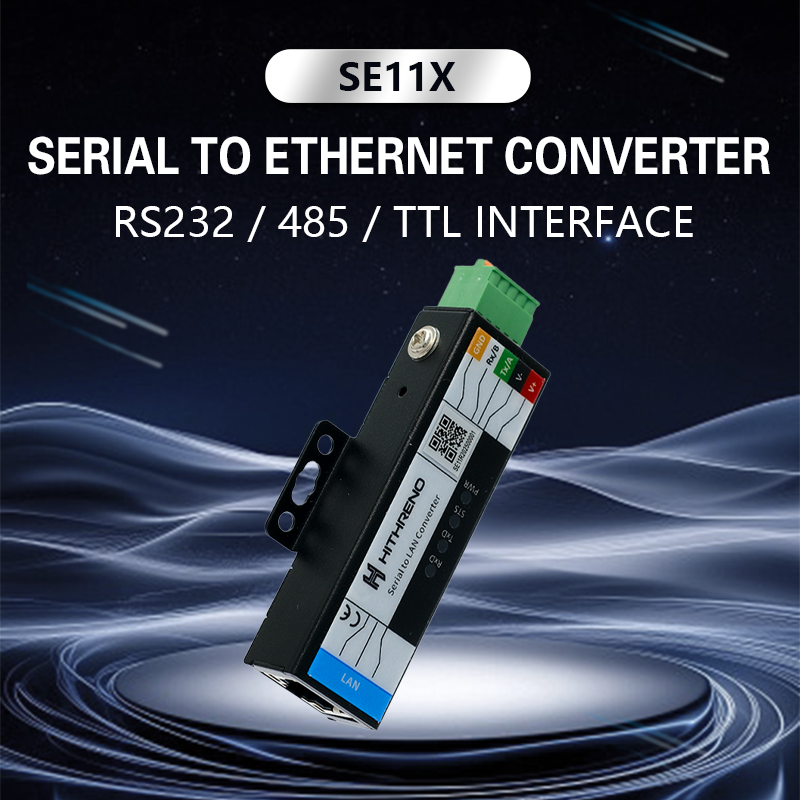

| Connectivity | RS232 / RS485 / TTL * 1 in 2.54mm 3PIN Connector |
| Baudrate | 1200 ~ 460800bps |
| Data Bits | 7 or 8 Bits |
| Verify Bits | None / Odd / Even |
| Stop Bits | 1 or 2 Bits |
| Southbound | |
|---|---|
| Protocol | Ethernet |
| Connectivity | Socket * 2 in RJ45 Connector |
| Data Rate | 10 / 100Mbps Self-Adaptive |
| Distance | 100 Meters |
| Indicator | |
|---|---|
| Power | Support |
| Status | Support |
| Northbound Tx / Rx | Support |
| Southbound Tx / Rx | Support |
| System | |
|---|---|
| Reset Button | Support |
| AT Command | Support |
| Device Discover | Support |
| Firmware Update | Support |
| Features | |
|---|---|
| Feature | Configuration Tool UDP / TCP Client UDP / TCP Server HTTP Client MQTT |
