SL11x

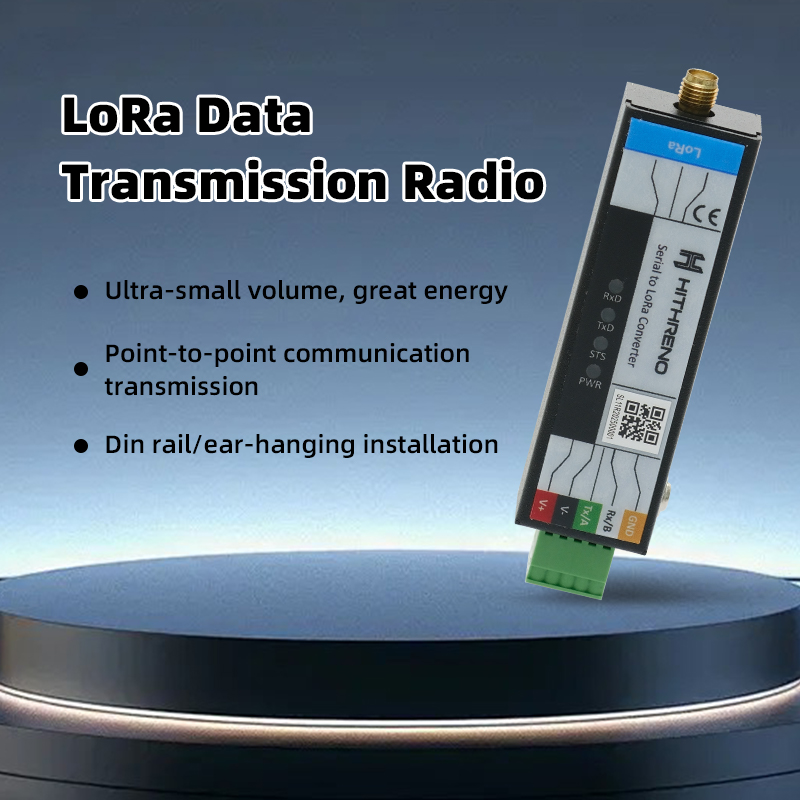

SL11x Serial to LoRa Converter

UART LoRa RS232 RS485 TTL Converter Wireless DTU Data Transfer Unit Long Range

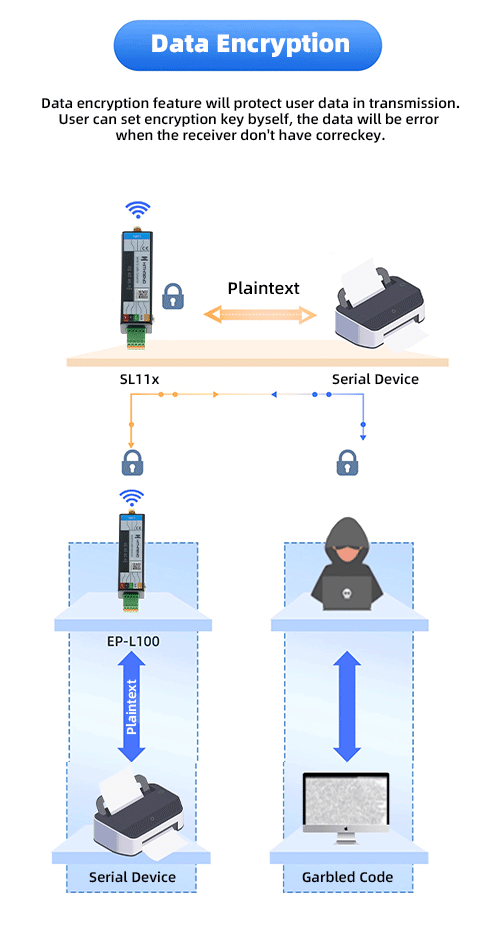

SL11x Serial to LoRa Converter is the answer to long-distance wireless data transmision, especially when the WiFi cannot access for several kilometers or more. It operates in the 433MHz ISM frequency band and has strong anti-interference performance, supporting wireless data transmission of up to 5km or more. It supports encryption technology, which can effectively protect your critical data.
GET A QUOTE

Highlights

  • General
  • Northbound
  • Southbound
  • Indicator
  • System
  • Features
General
Dimesion 75 * 23 * 16mm
Weight < 60g
Power Supply 9 ~ 36V
Operating Current 40mA @ 12V
Operating Temperature -40°C ~ +85°C
ESD Protection Level IEC 61000-4-2 Level 3 (±6kV Contact / ±8kV Air)
Northbound
Protocol Passthrough

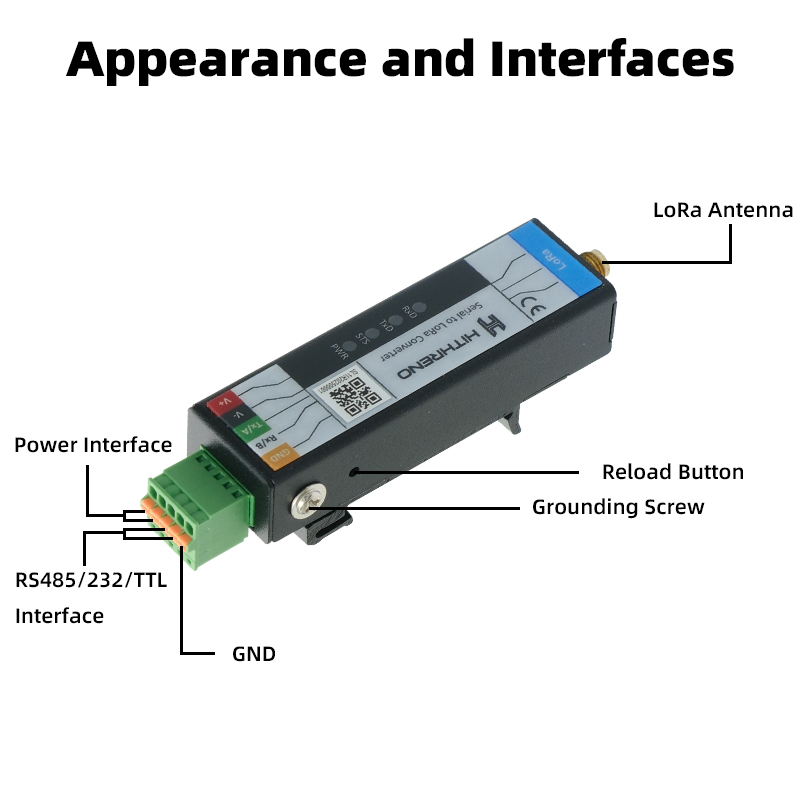

Connectivity RS232 / RS485 / TTL * 1 in 2.54mm 3PIN Connector
Baudrate 1200 ~ 460800bps
Data Bits 7 or 8 Bits
Verify Bits None / Odd / Even
Stop Bits 1 or 2 Bits
Southbound
Protocol LoRa
Connectivity 22dBm @ 400 ~ 493MHz in SMA Connector
Data Rate < 50kbps

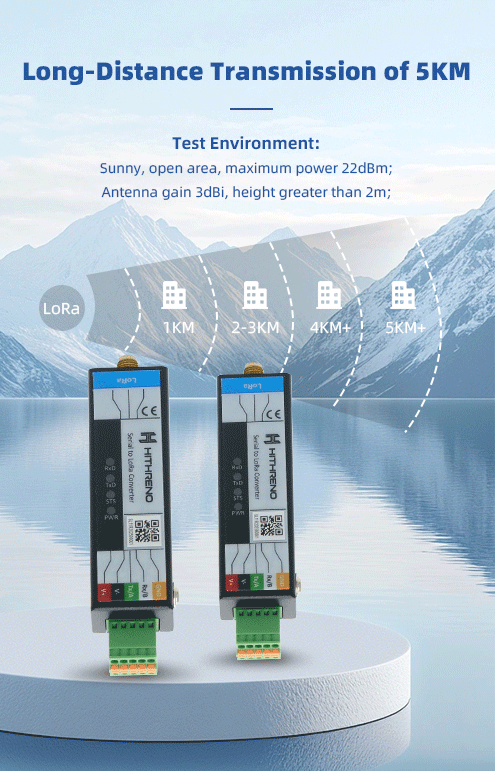

Distance Up to 5000 Meters
Indicator
Power Support
Status Support
Northbound Tx / Rx Support
Southbound Tx / Rx Support
System
Reset Button Support
AT Command Support
Device Discover Support
Firmware Update Support
Features
Feature N/A

Standard Accessories of SL11x

standard_accessory0

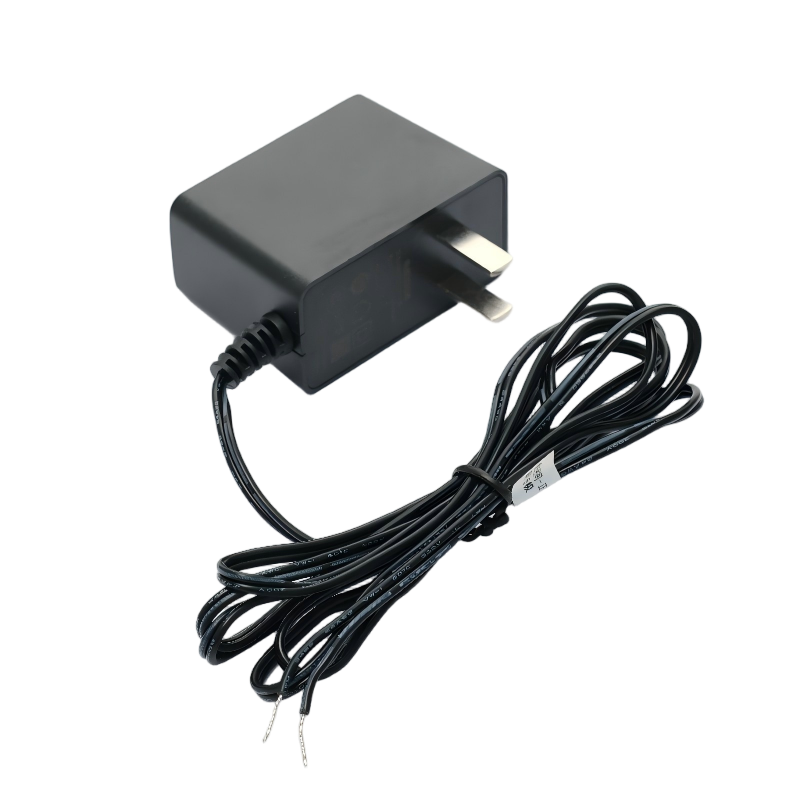

DC12V-CN

DC12V Power Adapter
standard_accessory1

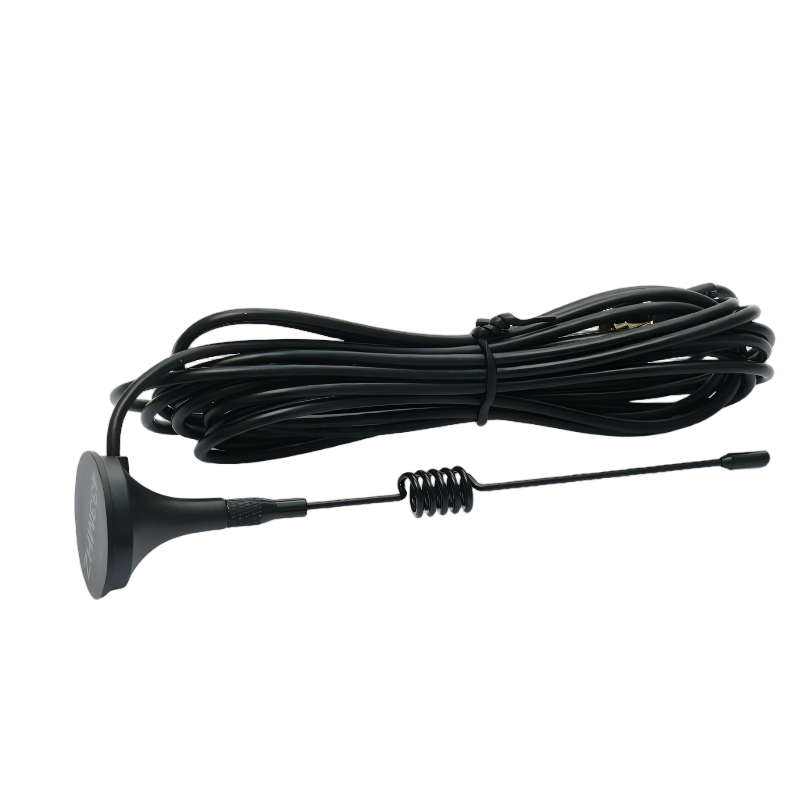

AN400-SMA

400MHz Antenna
