SW11x

SW11x Serial to WIFI Converter

UART WIFI RS232 RS485 TTL Converter Wireless DTU Data Transfer Unit Long Range

SW11x Serial to WIFI Converter is super awesome for making the serial device to wireless! It can adapt to any serial port level such as RS232, RS485 and TTL, and kinds baud rate from 1200bps to 460800bps.
SW11x Serial to WIFI Converter supports 9 ~ 36V power supply, and can act as UDP or TCP client and server.
It is incredibly simple to deploy and integrate the serial device to WIFI network.
GET A QUOTE

Highlights

  • General
  • Northbound
  • Southbound
  • Indicator
  • System
  • Features
General
Dimesion 75 * 23 * 16mm
Weight < 60g
Power Supply 9 ~ 36V
Operating Current 55mA @ 12V
Operating Temperature -40°C ~ +85°C
ESD Protection Level IEC 61000-4-2 Level 3 (±6kV Contact / ±8kV Air)
Northbound

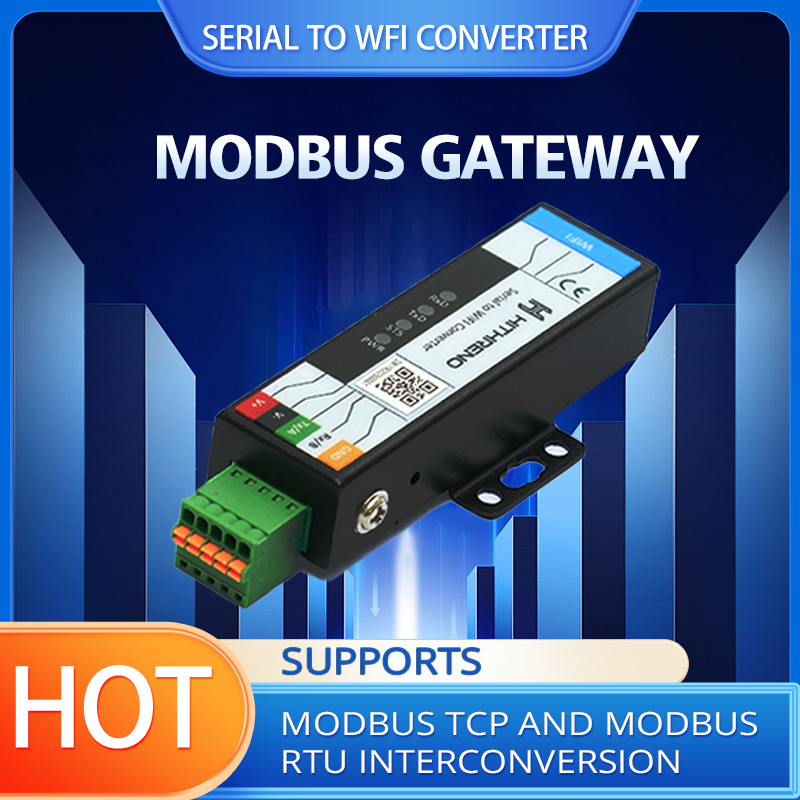

Protocol Passthrough / Modbus RTU
Connectivity RS232 / RS485 / TTL * 1 in 2.54mm 3PIN Connector
Baudrate 1200 ~ 460800bps
Data Bits 7 or 8 Bits
Verify Bits None / Odd / Even
Stop Bits 1 or 2 Bits
Southbound
Protocol 2.4GHz WiFi AP/STA/APSTA
Connectivity Socket * 2 in SMA Connector
Data Rate 10 / 100Mbps Self-Adaptive
Distance 100 Meters
Indicator
Power Support
Status Support
Northbound Tx / Rx Support
Southbound Tx / Rx Support
System
Reset Button Support
AT Command Support
Device Discover Support
Firmware Update Support
Features
Feature Configuration Tool
UDP / TCP Client
UDP / TCP Server
HTTP Client
MQTT

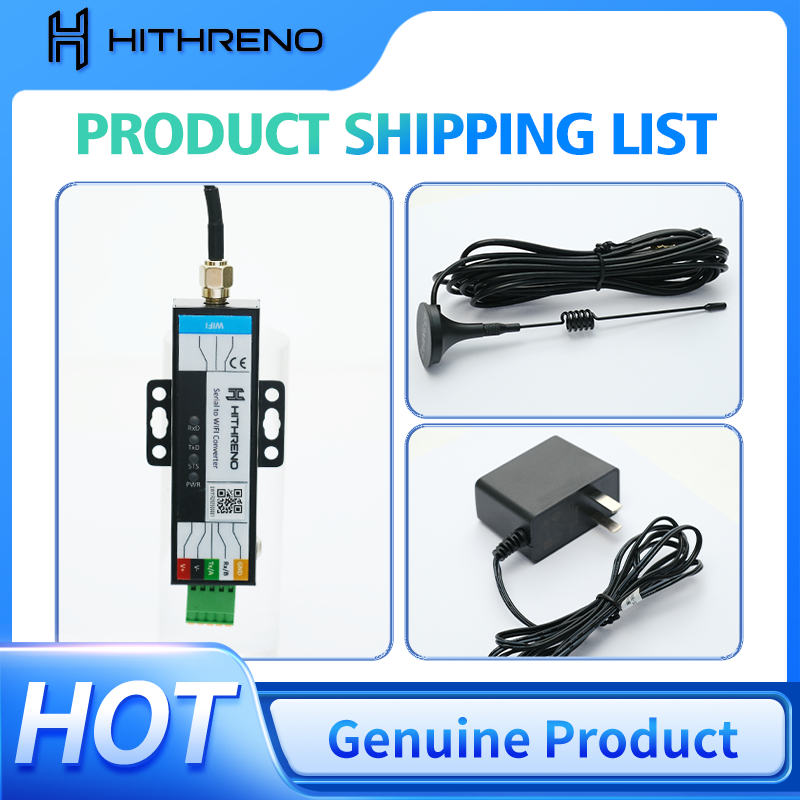

Standard Accessories of SW11x
